Feature

· Hermetic ceramics-metal stud structure
· Capacity of supporting high surge current

Typical Application

· DC motor control, Control DC power supplie, AC switch and thermal control, Synchronous motor excitation.

Model Specification

Type

IT(AV)

IF(RMS)

VTM

VRRM

IDRM

IGT

VGT

IH

dv/dt

di/dt

Tj

Rjc

Weight

Outline

A

A

V

V

mA

mA

V

mA

V/μS

A/μS

℃/W

℃

g

KP5A

5

8

≤2.2

100~3000

≤8.0

5~45

≤2.5

5~45

≥500

-

-40 ~+125

≤3.0

12

B-1

KP10A

10

16

≤2.2

100~3000

≤8.0

5~45

≤2.5

5~45

≥500

-

-40 ~+125

≤2.5

27

B-2

KP20A

20

32

≤2.2

100~3000

≤8.0

5~45

≤2.5

5~45

≥500

-

-40 ~+125

≤1.0

29

B-3,4

KP30A

30

48

≤2.2

100~3000

≤10

5~50

≤2.5

5~50

≥800

≥50

-40 ~+125

≤0.5

112

B-5

KP50A

50

80

≤2.4

100~3000

≤10

5~150

≤2.5

5~150

≥800

≥50

-40 ~+125

≤0.14

142

B-6,11

KP100A

100

160

≤2.4

100~3000

≤10

5~200

≤2.5

5~200

≥800

≥50

-40 ~+125

≤0.11

207

B-7,12

KP200A

200

320

≤2.6

100~3000

≤10

5~200

≤2.5

5~200

≥800

≥100

-40 ~+125

≤0.11

327

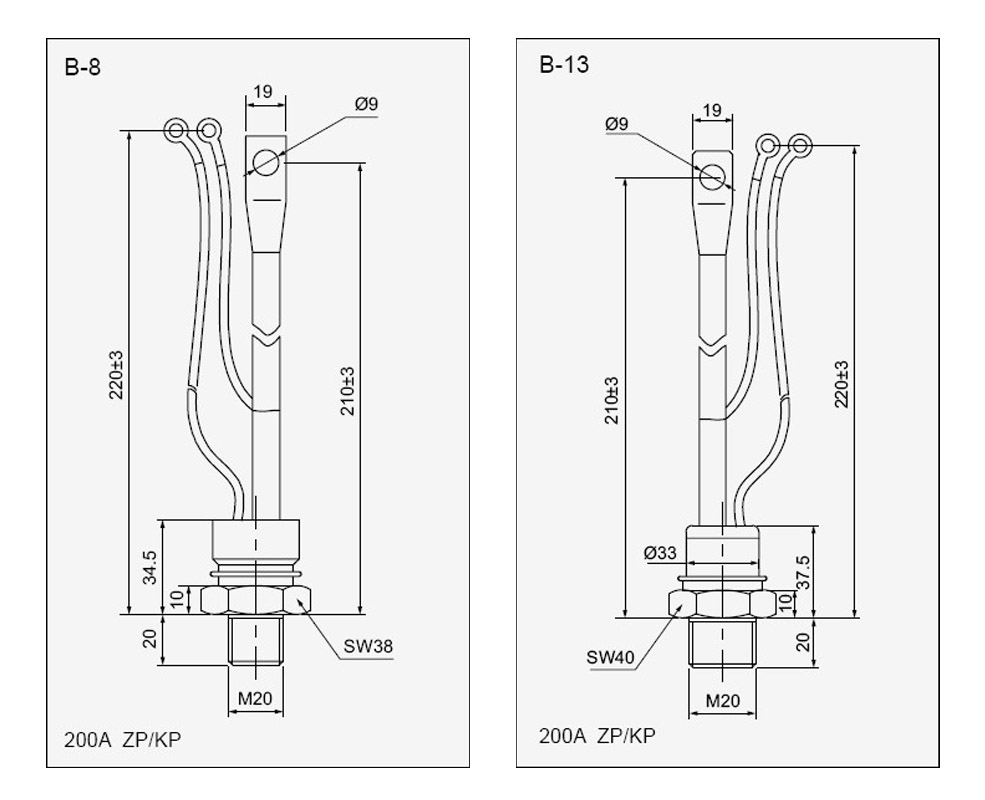

B-8,13

KP300A

300

480

≤2.6

100~3000

≤30

5~200

≤2.5

5~200

≥800

≥100

-40 ~+125

≤0.08

472

B-9

KP500A

500

800

≤2.6

100~3000

≤30

5~200

≤2.5

5~200

≥800

≥100

-40 ~+125

≤0.04

927

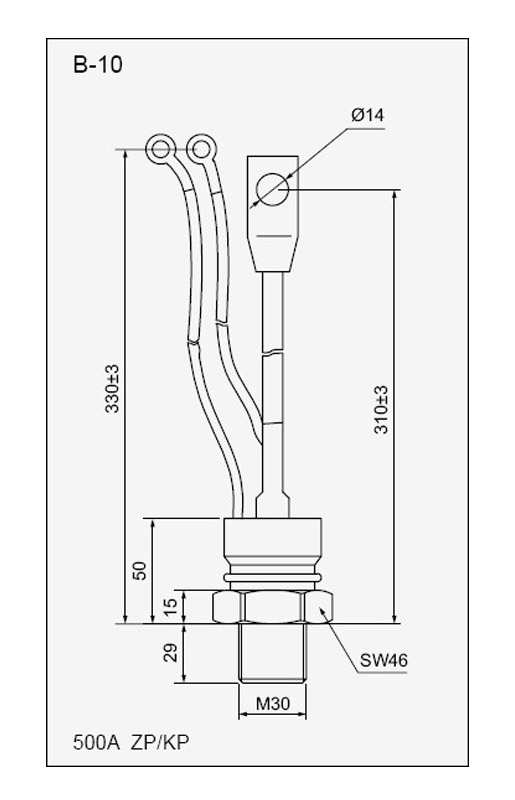

B-10
